Tutorial

This section aims to demonstrate some basic gptables functionality. The code from each section can be run from the examples folder, with more advanced usage guides found in the how-tos and API documentation.

To install gptables, simply use pip install gptables.

Starting out

First import gptables alongside any other necessary packages and read in the data.

import pandas as pd
import gptables as gpt

penguins_data = pd.read_csv("penguins.csv")

Perform any data preparation, for example cleaning. Then construct the GPTable by defining some details about the data, such as its title and source. The table containing the data should be a pandas.DataFrame.

penguins_table = gpt.GPTable(
    table = penguins_data,
    table_name = "penguins_statistics",
    title = "The Palmer Penguins Dataset",
    subtitles = ["This is the first subtitle",
                 "This is another subtitle"],
    scope = "Penguins",
    source = "Palmer Station, Antarctica",
)

As a matter of preference, this can alternatively be achieved using a dictionary of keyword arguments:

kwargs = {
    "table_name": "penguins_statistics",
    "title": "The Palmer Penguins Dataset",
    "subtitles": ["This is the first subtitle",
                 "This is another subtitle"],
    "scope": "Penguins",
    "source": "Palmer Station, Antarctica",
}

penguins_table = gpt.GPTable(table = penguins_data, **kwargs)

Each GPTable should then be associated with a sheet name using a dictionary.

penguins_sheets = {"Penguins": penguins_table}

Finally, use write_workbook() with the output path, sheets, and any additional elements to create and write a formatted Excel workbook.

gpt.write_workbook(
    filename="python_penguins_gptable.xlsx",
    sheets=penguins_sheets,
    contentsheet_options={"additional_elements": ["subtitles", "scope"]},
)

The workbook contains a table of contents, with sheet names linking to the data sheets alongside descriptions of the data. There is a sheet for each dataset, on which the specified details such as titles are presented in a minimal style with text of a legible font and size.

The code is combined below in an extendable tab.

Starting out

import pandas as pd
import gptables as gpt

penguins_data = pd.read_csv("penguins.csv")

penguins_table = gpt.GPTable(
    table = penguins_data,
    table_name = "penguins_statistics",
    title = "The Palmer Penguins Dataset",
    subtitles = ["This is the first subtitle",
                "This is another subtitle"],
    scope = "Penguins",
    source = "Palmer Station, Antarctica",
)

penguins_sheets = {"Penguins": penguins_table}

gpt.write_workbook(
    filename="gpt_starting_out.xlsx",
    sheets=penguins_sheets,
    contentsheet_options={"additional_elements": ["subtitles", "scope"]},
)

Customising the table of contents

The description column in a table of contents can be customised by passing additional elements from the GPTable into the contentsheet_options parameter of gptables.write_workbook().

contentsheet_options can take additional_elements, including 'subtitles', 'scope', 'source', and 'instructions' to present more information about individual sheets within the workbook:

    penguins_table = gpt.GPTable(
        ...
        instructions="This workbook contains a single sheet. The name is a link to it."
        subtitles=["This is the first subtitle", "This is another subtitle"],
        scope="Penguins",
        source="Palmer Station, Antarctica",
        ...
    )

    ...

    gpt.write_workbook(
        filename=output_path,
        sheets=penguins_sheets,
        contentsheet_options={"additional_elements": ["instructions", "subtitles", "scope", "source"]},
    )

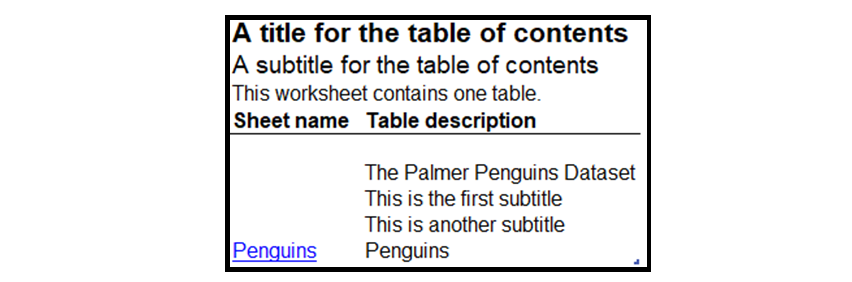

contentsheet_options also allows for customisation of the table of contents title, subtitles, table_name, instructions and column_names. For example:

    gpt.write_workbook(
        filename=output_path,
        sheets=penguins_sheets,
        contentsheet_options={"title": "A title for the table of contents",
                                "subtitles": ["A subtitle for the table of contents"],
                                "additional_elements": ["subtitles", "scope"]},
    )

Set contentsheet_label = None inside gptables.write_workbook() to disable creating a table of contents.

More information can be found in the function documentation.

Adding notes

Notes are useful for adding footnotes, clarifications, or extra information to help users interpret the data. Notes can be attached to tables by supplying notes_table to produce_workbook() or write_workbook().

Notes appear on a separate worksheet called Notes. They can be referenced in the title, subtitles, scope, source, and legend elements using the notation $$placeholder$$. These placeholders are replaced with numbered references in the final output. Notes cannot be added to individual data cells or column headings.

penguins_table = gpt.GPTable(
    ...
    title = "The Palmer Penguins Dataset$$note_about_x$$",
    subtitles = ["This is the first subtitle$$note_about_y$$",
                 "This is another subtitle"],
    ...
)

For the note table to appear on the notes sheet, it must be provided as a pandas.DataFrame to the notes_table argument of gptables.write_workbook(). This should contain the text of the placeholder or reference, the text for the note, and optionally any links to include with the note.

Below, note references are first created using a dictionary of lists before being converted into a pandas.DataFrame. All lists must be the same length - if a note has no link, use an empty string ("") or None at that list position.

notes = {
    "Note reference": ["note_about_x", "note_about_y", "note_about_z", "note_with_no_link"],
    "Note text": [
        "This is a note about x linking to google.",
        "This is a note about y linking to duckduckgo.",
        "This is a note about z linking to the ONS website.",
        "This is a note with no link."
    ],
    "Useful link": [
        "[google](https://www.google.com)",
        "[duckduckgo](https://duckduckgo.com/)",
        "[ONS](https://www.ons.gov.uk)",
        None
    ],
}
penguins_notes_table = pd.DataFrame.from_dict(notes)

When producing the workbook, specify the notes_table.

gpt.write_workbook(
    ...
    notes_table=penguins_notes_table,
    ...
)

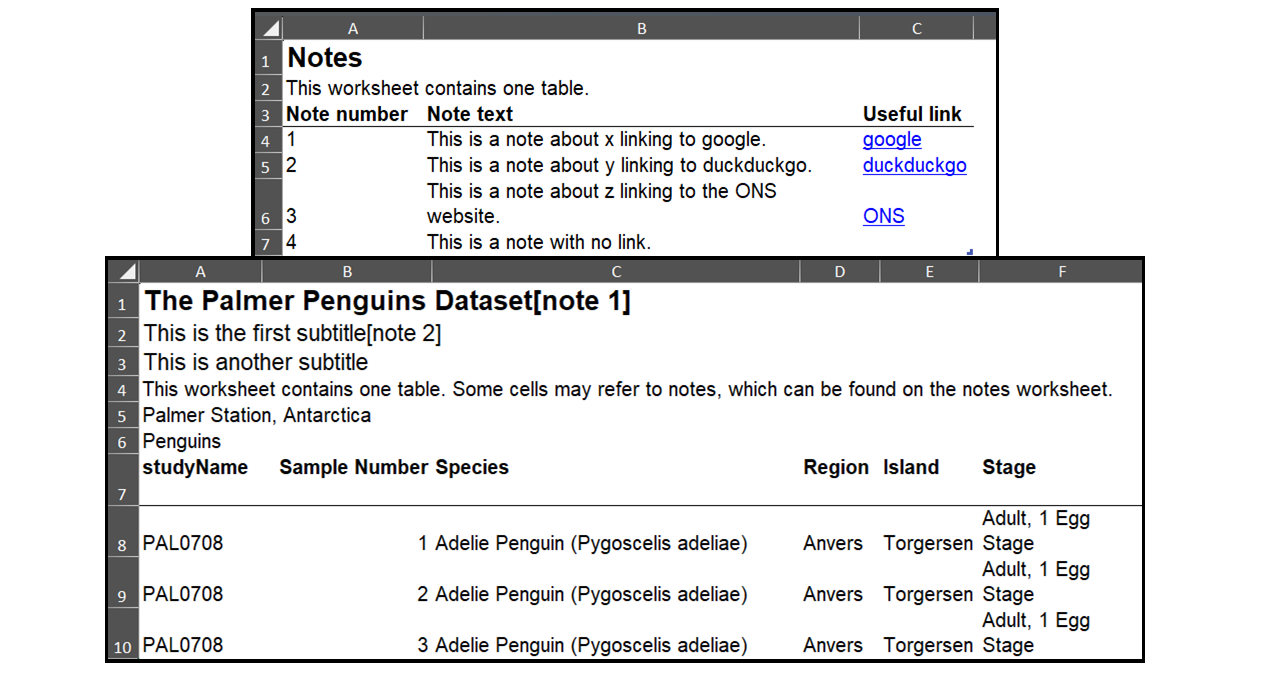

The resulting spreadsheet contains a sheet called Notes. In a table, the automatically generated note numbers are alongside the note text and link (if supplied). The note numbers correspond to where placeholders were inserted in the title and subtitle.

This is combined into a full example below in an extendable tab.

Adding notes

import pandas as pd
import gptables as gpt

penguins_data = pd.read_csv("penguins.csv")

penguins_table = gpt.GPTable(table=penguins_data,
                            table_name = "penguins_statistics",
                            title="The Palmer Penguins Dataset$$note_about_x$$",
                            subtitles = ["This is the first subtitle$$note_about_y$$",
                                        "This is another subtitle"],
                            scope = "Penguins",
                            source = "Palmer Station, Antarctica")

penguins_sheets = {"Penguins": penguins_table}

notes = {
    "Note reference": ["note_about_x", "note_about_y", "note_about_z", "note_with_no_link"],
    "Note text": [
        "This is a note about x linking to google.",
        "This is a note about y linking to duckduckgo.",
        "This is a note about z linking to the ONS website.",
        "This is a note with no link."
    ],
    "Useful link": [
        "[google](https://www.google.com)",
        "[duckduckgo](https://duckduckgo.com/)",
        "[ONS](https://www.ons.gov.uk)",
        None
    ],
}
penguins_notes_table = pd.DataFrame.from_dict(notes)

gpt.write_workbook(
    filename="gpt_adding_notes.xlsx",
    sheets=penguins_sheets,
    notes_table=penguins_notes_table,
    contentsheet_options={"additional_elements": ["subtitles", "scope"]},
)

The notes sheet title, table_name and instructionscan be customised by supplying these to the notesheet_options parameter in write_workbook() or produce_workbook(). An updated label can be supplied to notesheet_label.

Adding a cover sheet

Cover sheets can be used to provide information that is general to all tables in a workbook.

To include a cover sheet, supply text elements to the attributes of a Cover object:

penguins_cover = gpt.Cover(
    cover_label = "Cover",
    title = "Palmer Penguins Dataset",
    intro=[
        "This spreadsheet contains a table of data obtained from the palmerpenguins package",
        "This is intended to be a simple example of how to use the gptables package to create a spreadsheet with a cover sheet and data sheets.",
    ],
    about=[
        "Additional information about your publication can go here",
    ],
    contact=[
        "Tel: 01234 567890",
        "Email: [example@email.address](mailto: example@email.address)",
    ],
)

This will automatically create a cover sheet with the subheadings "Introductory information", "About these data", and "Contact" if these attributes are included.

Additional formatting can be introduced to create further subheadings if required:

penguins_cover = gpt.Cover(
    cover_label = "Cover",
    title = "Palmer Penguins Dataset",
    intro=[
        "This spreadsheet contains a table of data obtained from the palmerpenguins package",
        "This an example of how to use the gptables package to create a spreadsheet with a cover sheet and data sheets.",
    ],
    about=[
        "Additional information about your publication can go here",
        [{"bold": True}, "Publication dates"],
        "This data tables in this spreadsheet were originally published at 7:00am 01 January 2025.",
        "The next publication will be published at 7:00am 01 January 2026.",
        [{"bold": True}, "Methodology notes"],
        "Information on methodology can be useful to users of your data",
        [{"bold": True}, "Notes, blank cells and units"],
        "Some cells in the tables refer to notes which can be found in the notes worksheet. Note markers are presented in square brackets, for example: [note 1].",
        "Blank cells indicate no data. An explanation of why there is no data is given in the notes worksheet.",
        "Some column headings give units, when this is the case the units are presented in round brackets to differentiate them from note markers.",
    ],
    contact=[
        "Tel: 01234 567890",
        "Email: [example@email.address](mailto: example@email.address)",
    ],
)

Supply the Cover to the cover_sheet argument of gptables.write_workbook():

gpt.write_workbook(
    ...
    cover_sheet=penguins_cover,
    ...
)

A cover sheet is created with the supplied information, with the title in large bold text followed by the introduction, information about the data, and contact details.

The code is combined with a full example below in an extendable tab.

Adding a cover sheet

import pandas as pd
import gptables as gpt

penguins_data = pd.read_csv("penguins.csv")

penguins_table = gpt.GPTable(
    table = penguins_data,
    table_name = "penguins_statistics",
    title = "The Palmer Penguins Dataset",
    subtitles = ["This is the first subtitle",
                "This is another subtitle"],
    scope = "Penguins",
    source = "Palmer Station, Antarctica",
)

penguins_sheets = {"Penguins": penguins_table}

penguins_cover = gpt.Cover(
    cover_label = "Cover",
    title = "Palmer Penguins Dataset",
    intro=[
        "This spreadsheet contains a table of data obtained from the palmerpenguins package",
        "This is intended to be a simple example of how to use the gptables package to create a spreadsheet with a cover sheet and data sheets.",
    ],
    about=[
        "Additional information about your publication can go here",
        [{"bold": True}, "Publication dates"],
        "Date published: 01 January 2025.",
        "Next release: 01 January 2026.",
        [{"bold": True}, "Methodology notes"],
        "Information on methodology can be useful to users of your data",
        [{"bold": True}, "Notes, blank cells and units"],
        "Some cells in the tables refer to notes which can be found in the notes worksheet. Note markers are presented in square brackets, for example: [note 1].",
        "Blank cells indicate no data. An explanation of why there is no data is given in the notes worksheet, see the column headings for which notes you should refer to.",
        "Some column headings give units, when this is the case the units are presented in round brackets to differentiate them from note markers.",
    ],
    contact=[
        "Tel: 01234 567890",
        "Email: [example@email.address](mailto: example@email.address)",
    ],
)

gpt.write_workbook(
    filename="gpt_adding_cover.xlsx",
    sheets=penguins_sheets,
    cover=penguins_cover,
    contentsheet_options={"additional_elements": ["subtitles", "scope"]},
)

Adding additional data sheets

For additional data sheets, construct additional GPTables:

penguins_table_1 = gpt.GPTable(
    table=penguins_data_1,
    table_name="penguins_statistics_1",
    title="The Palmer Penguins Dataset (Sheet 1)",
    subtitles=["This is the first subtitle", "This is another subtitle"],
    scope="Penguins",
    source="Palmer Station, Antarctica",
)

penguins_table_2 = gpt.GPTable(
    table=penguins_data_2,
    table_name="penguins_statistics_2",
    title="The Palmer Penguins Dataset (Sheet 2)",
    subtitles=["This is the first subtitle for sheet 2", "Another subtitle for sheet 2"],
    scope="Penguins",
    source="Palmer Station, Antarctica",
)

Collate the GPTables with their names in a dictionary:

penguins_sheets = {
        "Penguins 1": penguins_table_1,
        "Penguins 2": penguins_table_2
    }

Then, use gptables.write_workbook() to create and write out the workbook:

gpt.write_workbook(
    ...
    sheets=penguins_sheets,
    ...
)

The code is combined into a full example below in an extendable tab.

Adding additional data sheets

import pandas as pd
import gptables as gpt

penguins_data = pd.read_csv("penguins.csv")

penguins_data_1 = penguins_data.iloc[:, :10]
penguins_data_2 = pd.concat([penguins_data.iloc[:, :3], penguins_data.iloc[:, 10:]], axis=1)

penguins_table_1 = gpt.GPTable(
    table=penguins_data_1,
    table_name="penguins_statistics_1",
    title="The Palmer Penguins Dataset (Sheet 1)",
    subtitles=["This is the first subtitle", "This is another subtitle"],
    scope="Penguins",
    source="Palmer Station, Antarctica",
)

penguins_table_2 = gpt.GPTable(
    table=penguins_data_2,
    table_name="penguins_statistics_2",
    title="The Palmer Penguins Dataset (Sheet 2)",
    subtitles=["This is the first subtitle for sheet 2", "Another subtitle for sheet 2"],
    scope="Penguins",
    source="Palmer Station, Antarctica",
)

penguins_sheets = {
    "Penguins 1": penguins_table_1,
    "Penguins 2": penguins_table_2
}

gpt.write_workbook(
    filename="python_penguins_gptable.xlsx",
    sheets=penguins_sheets,
    contentsheet_options={"additional_elements": ["subtitles", "scope"]},
)
