Add additional formatting

There may be specific user needs or organisational reasons requiring formatting other than the gptables defaults. If this is required regularly, consider the use of a theme.

A wide range of options are possible with the gptable.GPTable(..., additional_formatting = ...) parameter. See the XlsxWriter documentation for all formatting options.

Consider accessibility implications to formatting changes

Additional formatting changes the gptables defaults, which can introduce accessibility issues. Refer to the Releasing statistics in spreadsheets guidance and consider user needs regarding accessiblity before adjusting the formatting.

The sample code can be run from thes examples folder.

Using additional_formatting

The gptable.GPTable(..., additional_formatting = ...) parameter allows for specifying columns, rows, and/or cells and the corresponding formatting changes to make.

Formatting conflicts

There are some conflicts between additional formatting options, for example wrapping and shrinking text. Outputs should be reviewed for correctness.

The option of what to format is specified, followed by the specific columns, rows, or cells, and then the formatting changes. To change the properties of columns called Species and Island to be center-aligned and italic, for example:

sample_additional_formatting = [
    {
        "column": {
            "columns": ["Species", "Island"],
            "format": {
                "align": "center",
                "italic": True,
            },
        }
    }
]

Columns can be referenced by name or number. Rows may only be referenced by number, with -1 corresponding to the last row. Column and row numbers include indices and column headings. Numeric indexing refers to position within the table, not the position in the output Excel sheet. Cell formatting takes highest precedence, followed by row formatting, and finally column formatting.

Multiple selections of columns, rows, and cells can be made in a single additional_formatting list.

penguins_additional_formatting = [
    {
        "column": {
            "columns": ["Species", "Island"],
            "format": {
                "align": "center",
                "italic": True,
            },
        }
    },
    {
        "column": {"columns": [3], "format": {"left": 1}}
    },
    {
        "row": {
            "rows": -1,
            "format": {
                "bottom": 1,
                "indent": 2,
            },
        }
    },
]

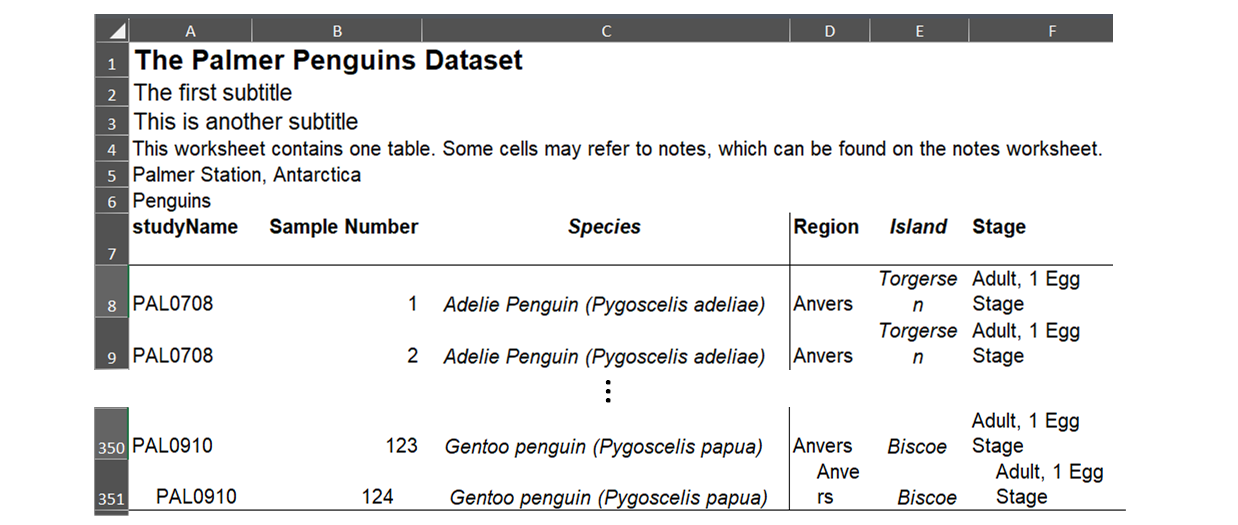

This is combined with a basic example below in an extendable tab. The result is italicisation of two columns, left bordering on the 4th column, and indentation in the final row.

Using additional formatting

import pandas as pd
import gptables as gpt

penguins_data = pd.read_csv("penguins.csv")

penguins_additional_formatting = [
    {
        "column": {
            "columns": ["Species", "Island"],
            "format": {
                "align": "center",
                "italic": True,
            },
        }
    },
    {
        "column": {"columns": [3], "format": {"left": 1}}
    },
    {
        "row": {
            "rows": -1,
            "format": {
                "bottom": 1,
                "indent": 2,
            },
        }
    },
]

penguins_table = gpt.GPTable(
    table = penguins_data,
    table_name = "penguins_statistics",
    title = "The Palmer Penguins Dataset",
    subtitles = ["This is the first subtitle",
                "This is another subtitle"],
    scope = "Penguins",
    source = "Palmer Station, Antarctica",
    additional_formatting = penguins_additional_formatting,
)

penguins_sheets = {"Penguins": penguins_table}

wb = gpt.produce_workbook(
    filename="gpt_additional_formatting.xlsx",
    sheets=penguins_sheets
)
wb.close()

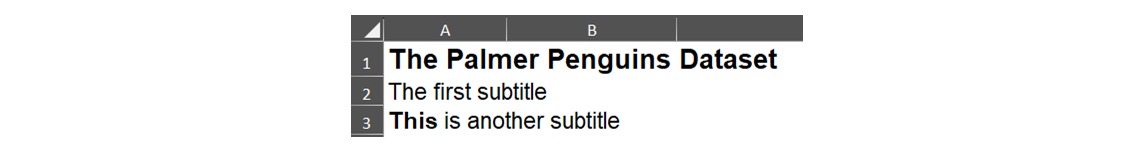

Formatting text

Formatting can also be applied to the text in title, subtitles, scope, source and legend elements without using additional_formatting. Avoid using text formatting to represent data or important information, as most formatting is neither accessible nor machine readable.

Instead of a string, provide a list of strings and dictionaries containing valid XlsxWriter format properties and values to the relevant parameter. The formatting defined in these dictionaries will be applied to the next string in the list. For example:

formatted_subtitles = [
    "The first subtitle",
    [{"bold": True}, "This", " is another subtitle"],
]

This is combined with a basic example below in an extendable tab.

Formatting text

import pandas as pd
import gptables as gpt

penguins_data = pd.read_csv("penguins.csv")

formatted_subtitles = [
    "The first subtitle",
    [{"bold": True}, "This", " is another subtitle"],
]

penguins_table = gpt.GPTable(
    table = penguins_data,
    table_name = "penguins_statistics",
    title = "The Palmer Penguins Dataset",
    subtitles = formatted_subtitles
    scope = "Penguins",
    source = "Palmer Station, Antarctica",
)

penguins_sheets = {"Penguins": penguins_table}

wb = gpt.produce_workbook(
    filename="additional_formatting_example.xlsx",
    sheets=penguins_sheets
)
wb.close()

This formatting is applied in addition to the formatting of that element specified in the Theme.

Formatting of note references and links

Text formatting is not currently supported if the cell also contains note references or links. This may be changed in the future if there is sufficient user need, so please raise an issue if this is functionality you need.

Further formatting

gptables outputs can also be built on with the Format, Workbook and Worksheet classes from XlsxWriter.

Competing formatting

Some formatting will only occur where cells do not already have formatting applied, for example in the gptables global theme settings.

Consult the XlsxWriter Worksheet class documentation as well as the gptables theme how-to for more information.

Worksheet properties can be altered directly, for example setting row height:

ws = wb.worksheets()[0]
ws.set_row(0, 30)

Or, by using Format objects:

italic_format = wb.add_format({"italic": True})
ws.set_column(
    2, 3, 10, italic_format
)
