Custom themes with gptables

It might be necessary to diverge from the gptables defaults for organisational needs or user requirements. Where this is required regularly or across multiple teams, it can be helpful for reproducibility and code readability to create a custom theme as opposed to supplying an additional_formatting argument to GPTable.

Consider accessibility implications from custom themes

Using custom themes changes the gptables defaults, which can introduce accessibility issues. Refer to the Releasing statistics in spreadsheets guidance and consider user needs regarding accessiblity before adjusting the formatting.

The sample code can be run from the examples folder.

Global formatting

A .yaml can reformat settings across the whole workbook from global settings, as well as specified elements of the sheet. A basic example is shown below, where the order in which elements appear on the datasheet is supplied under description_order.

global:
    font_size: 13
    font_name: Arial
    font_color: '#AD0000'

title:
    font_size: 20

subtitle:
    font_size: 16

data:
    text_wrap: 1

description_order:
    - instructions
    - source
    - legend
    - scope

The path to the theme file or folder is supplied to the theme argument of gptables.write_workbook() inside of gptables.Theme():

    gptables.write_workbook(
        filename=output_path,
        sheets=sheets,
        theme=gptables.Theme(theme_path),
        contentsheet_options={"additional_elements": ["subtitles", "scope"]},
    )

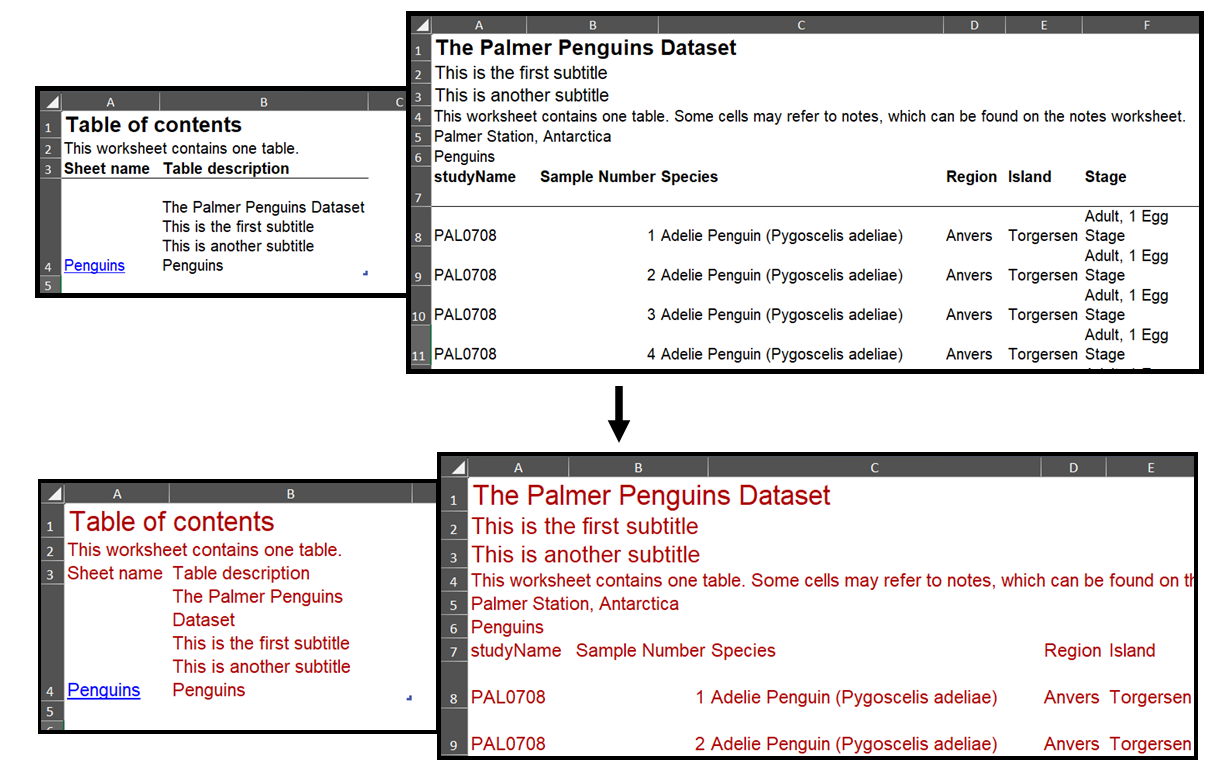

This is shown to have changed text colours and sizes as compared to the gptables defaults:

This is combined into an extendible code block below.

global formatting

import pandas as pd
import gptables as gpt

penguins_data = pd.read_csv("penguins.csv")

penguins_table = gpt.GPTable(
    table=penguins_data,
    table_name="penguins_statistics",
    title="The Palmer Penguins Dataset",
    subtitles=["This is the first subtitle",
               "This is another subtitle"],
    scope="Penguins",
    source="Palmer Station, Antarctica",
)

penguins_sheets = {"Penguins": penguins_table}

gpt.write_workbook(
    filename="gpt_custom_theme.xlsx",
    sheets=penguins_sheets,
    theme=gpt.Theme(example_theme_basic.yaml),
    contentsheet_options={"additional_elements": ["subtitles", "scope"]},
)

Element-wise formatting

Theme files can also be used to modify specific elements, such as the titles and subtitles on the cover:

global:
    font_size: 13
    font_name: Arial
    font_color: '#AD0000'

cover_title:
    font_size: 20

cover_subtitle:
    font_size: 18

data:
    text_wrap: 1

description_order:
    - instructions
    - source
    - legend
    - scope

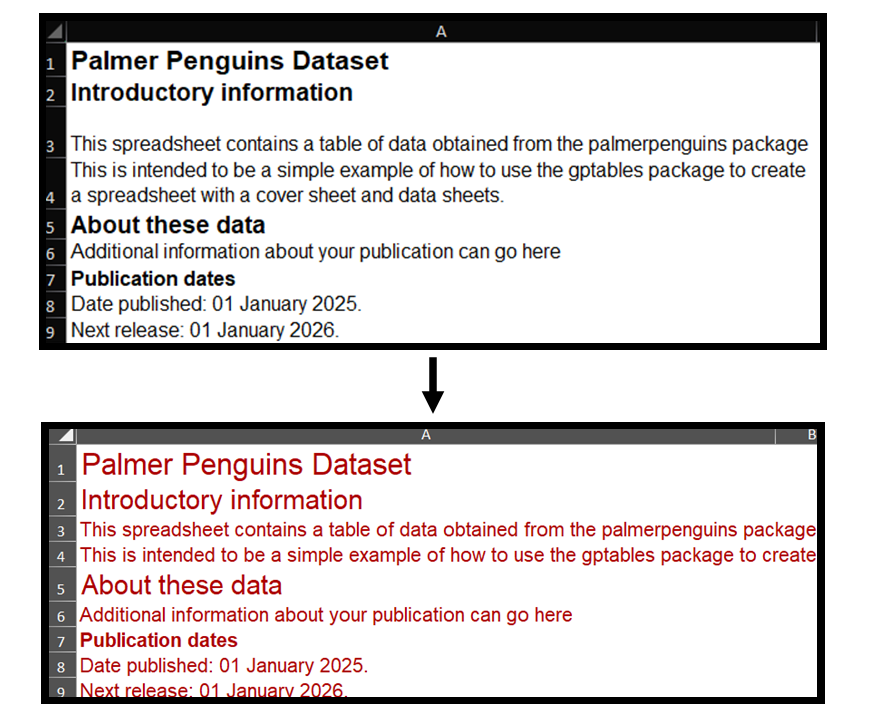

This is shown to have formatted the sizes of the cover elements, with the global settings dictating the other font sizes and colour throughout the workbook.

Additional options available for element-wise formatting can be found in the theme file.
